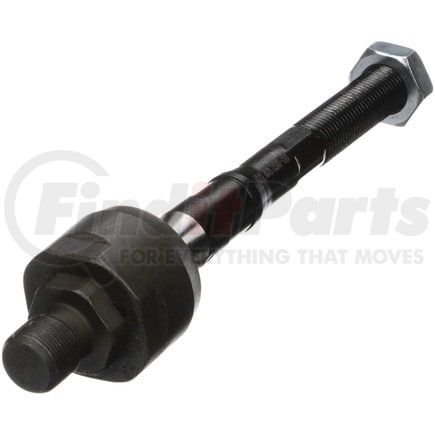

(888) 312-8812 Login SignupDELPHI TA5087 Tie Rod End
Tap to view 5 more
$3349
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Dec 24
DELPHI TA5087 Part Description
DELPHI TA5087 Specifications
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 184.90 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 35.8 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.669 IN |
| End 2 Thread Diameter | 17.00 MM |
| Height | 35.80 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.88 lb |
| Cone Outside Diameter | 0.650 IN |
| Cone Outside Diameter | 16.50 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 5.693 IN |
| Length - Stud Center to End | 144.60 MM |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.551 IN |
| End 1 Thread Diameter | 14.00 MM |
| Shank Length | 16.50 MM |
| Stud Length | 16.50 MM |
| Grade Type | Standard |
| Boot Color | Black |
| Shank Length | 0.650 IN |
| Stud Length | 0.650 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604283554 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
DELPHI TA5087 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4398 |
| MOOG Chassis Products | EV287 |
| Mazda | LA01-32-115 |
| Dorman | 535-099 |
| TRW | JAR745 |
DELPHI TA5087 Fits Vehicles
- Mazda MPV (1989-1995)
