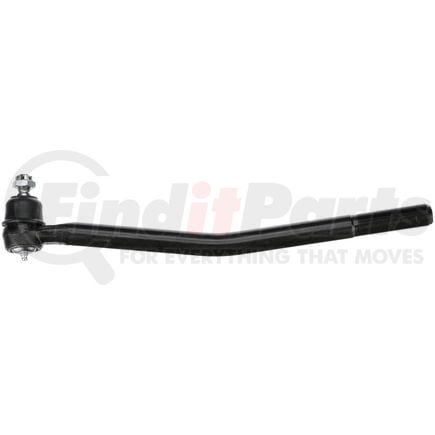

Name: Delphi TA5073 Tie Rod End
SKU: ta5073
Price: 37.99 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Left Inner
Item Grade	Standard Replacement
Length	461.00 MM
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Width	45 MM
Type	Bent
Mounting Hardware Included	Yes
End 2 Thread Diameter	1.000 IN
End 2 Thread Diameter	25.40 MM
Height	95.30 MM
Housing Material	Steel
36	1.039 IN
Tube Diameter	26.40 MM
Adjustable	No
Greasable	Yes
Weight	4.96 lb
Cone Outside Diameter	18.30 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
Length Stud Center to End	17.165 IN
Length Stud Center to End	436.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 2 Threads Per Inch	18
End 1 Thread Diameter	0.551 IN
End 1 Thread Diameter	14.00 MM
Shank Length	18.30 MM
Stud Length	18.30 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.720 IN
Stud Length	0.720 IN
662	0.720 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604282892
VMRS Code	015004020
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Ford E-450 Super Duty (2008-2019)
Ford E-350 Super Duty (2008-2019, 2021-2022)
Ford E-250 (2008-2014)
Ford E-150 (2007-2014)
