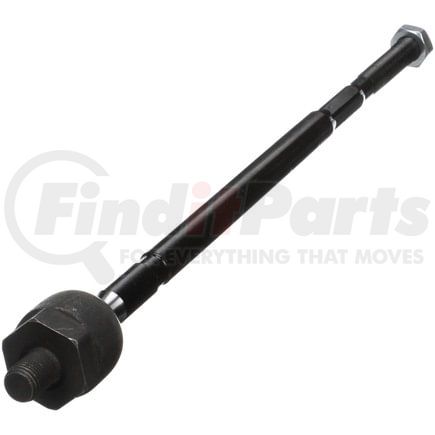

Delphi TA5049 - Tie Rod End
$3599
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 326.30 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 36 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 12.00 MM |
| Height | 36.00 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Tube Diameter | 14.50 MM |
| 36 | 0.571 IN |
| Adjustable | Yes |
| Greasable | No |
| Weight | 0.99 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| End 2 Thread Pitch | 1.25 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length Stud Center to End | 11.339 IN |
| Tie Rod Material | Steel |
| Grade | Premium |
| Length Stud Center to End | 288.01 MM |
| End 2 Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604286784 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Toyota Corolla (1984)
