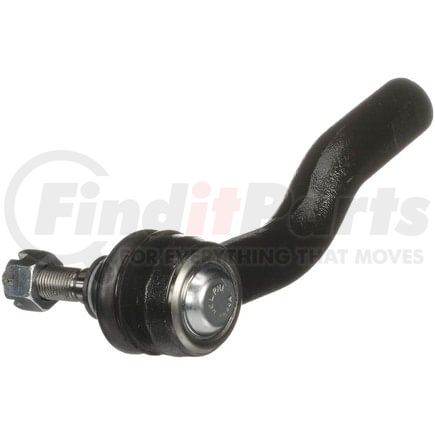

Name: Delphi TA5041 Tie Rod End
SKU: ta5041
Price: 33.99 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Left Outer
Item Grade	Standard Replacement
Length	167.00 MM
Color	Black
End 2 Gender	Female
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	47.6 MM
Type	Bent
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.551 IN
End 2 Thread Diameter	14.00 MM
Height	89.50 MM
Housing Material	Steel
36	0.984 IN
Tube Diameter	25.00 MM
Adjustable	No
Greasable	No
Weight	1.6 lb
Cone Outside Diameter	15.00 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
Length Stud Center to End	5.709 IN
Length Stud Center to End	145.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.472 IN
End 1 Thread Diameter	12.00 MM
Shank Length	15.00 MM
Stud Length	15.00 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.591 IN
Stud Length	0.591 IN
662	0.591 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	TR
UPC	00689604282854
VMRS Code	015004020
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Lincoln MKZ (2011-2012)
Mercury Milan (2010-2011)
Ford Fusion (2010-2012)
