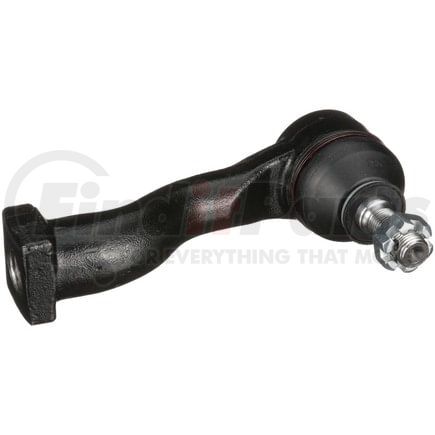

Delphi TA5032 - Tie Rod End
$2849
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Length | 146.00 MM |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 41 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.709 IN |
| End 2 Thread Diameter | 18.00 MM |
| Height | 80.00 MM |
| Housing Material | Steel |
| 36 | 1.102 IN |
| Tube Diameter | 28.00 MM |
| Adjustable | No |
| Greasable | No |
| Weight | 1.53 lb |
| Cone Outside Diameter | 16.00 MM |
| Bearing Material | Plastic |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length Stud Center to End | 4.843 IN |
| Length Stud Center to End | 123.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 16.00 MM |
| Stud Length | 16.00 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.630 IN |
| Stud Length | 0.630 IN |
| 662 | 0.630 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604282977 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Kia Sportage (1995-2002)
