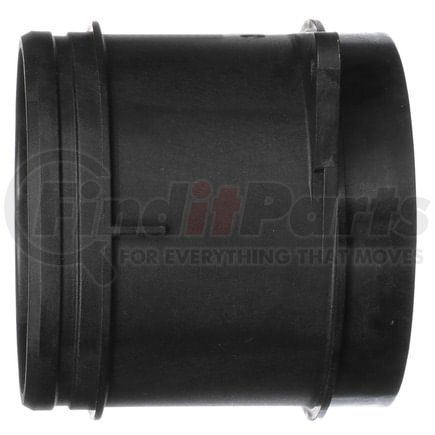

(888) 312-8812 Login SignupDELPHI AF10533 Mass Air Flow Sensor
$31499
Limited availability at this price!
In Stock
Get it by Friday, Jan 2
DELPHI AF10533 Part Description
DELPHI AF10533 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Package Contents | Mass Air Flow Sensor - Complete Assembly |
| Color | Black |
| Housing Included | Yes |
| Inlet Connection Diameter | 3.89 IN |
| Inlet Connection Diameter | 98.8 MM |
| Outlet Connection Diameter | 3.8 IN |
| Outlet Connection Diameter | 96.5 MM |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Mounting Hole Quantity | 2 |
| Housing Material | Plastic |
| Terminal Quantity | 4 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 85.5 MM |
| Sensor Casing Width | 95 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 123.20 MM |
| Mounting Hole Diameter | 0.2 IN |
| Seal Quantity | 0 |
| Sensor Casing Length | 3.3 IN |
| Sensor Casing Width | 3.7 IN |
| Bolt Hole Center To Bolt Hole Center | 4.80 IN |
| Mounting Hole Diameter | 7 MM |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 9026802000 |
| UPC | 00689604294796 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10533 Part Interchanges
| Brand | Part Number |
|---|---|
| Bosch | 0281002936, 0281006147 |
| Spectra Premium | MA456 |
| BWD | MA1254 |
| BMW | 13 62 8 509 725 |
| CARDONE Reman | 74-10174 |
| Standard Motor Products | MAS0422 |
| N/A | MF21302, MF21302N |
DELPHI AF10533 Fits Vehicles
- BMW X5 (2009-2013)
- BMW 335d (2009-2011)
