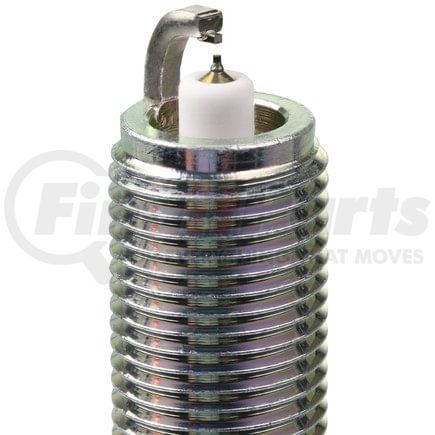

Name: NGK Spark Plugs 93420 NGK Ruthenium HX High Ignitability Spark Plug
SKU: 93420
Price: 12.99 USD
Availability: InStock

NGK SPARK PLUGS part description

Product Description

NGK Ruthenium HX High Ignitability Spark Plug

Features & Benefits

HIGH IGNITABILITY PROJECTED SQUARE PLATINUM ELECTRODE DESIGN: Combines 0.6 millimeter ruthenium center with a unique cut-back PSPE ground electrode
RUTHENIUM ALLOY CENTER ELECTRODE: NGK's patented ruthenium technology produces maximum performance, ignitability & durability at high temperatures
PSPE DESIGN: Projected square platinum electrode shape of the ground electrode provides the best ignitability and service life for high heat engines
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
RECOMMENDED USAGE: Modern vehicles using OE PSPE type spark plugs or for those seeking an aftermarket plug with the latest OE technology

Product Attributes

Stock Number	93420
Part Number	LFR6BHX
Resistance	5000.0 82
Ground Electrode Tip Design	Projected Square Platinum Electrode (PSPE) - High Ignitability
Ground Configuration	J-Gap
Ground Electrode Core Material	Copper
Electrical Terminal Type	Non-Removable Nut
Center Electrode Core Material	Copper
Center Electrode Tip Material	Ruthenium
Pre-Gap Size	.032 IN
Ground Electrode Quantity	1
Hex Size	5/8 IN
Insulator Height	50.50 MM
Manufacturer Heat Range	6
Seat Type	Flat
Reach	26.5 MM
Thread Diameter	14.00 MM
Short Style Spark Plug	No
Service Number	LFR6BHX
Washer Included	Yes
Grade Type	Performance
Hex Size	5/8" (16mm)
Insulator Height	1.99 IN
Reach	1.043 IN
Thread Diameter	0.551 IN
Insulator Material	Ceramic
Resistor Type	Yes
6648	0.0 IN
Ground Electrode Tip Material	Platinum
9459	No
9506	0.16 IN
9608	Fine Wire
9745	Crush
9805	Mid Projection

Additional Information

Harmonized Tariff Code (HTS)	8511100000
Warranty Time UOM	MO
Warranty Time	2
Country of Origin (Primary)	JP
UPC	00087295934203
VMRS Code	033003005
UNSPSC	26101732

Part Interchanges

Fits Vehicles

Volvo V60 (2015-2016)
Volvo XC60 (2010-2016)
Volvo XC70 (2008-2015)
Volvo C30 (2007-2013)
Volvo S80 (2007-2015)
Volvo XC90 (2007-2011)
Volvo C70 (2006-2013)
Volvo V50 (2005-2011)
Volvo V70 (2004-2010)
Volvo S60 (2004-2009, 2011-2016)
Volvo S40 (2004-2011)
Dodge Durango (2021, 2023-2024)
Ram 1500 (2021-2024)
Jeep Grand Cherokee (2018-2021)
Dodge Charger (2015-2023)
Dodge Challenger (2015-2023)
Subaru WRX STI (2013-2018)
Subaru WRX (2013-2014)
Hyundai Genesis Coupe (2013-2014)
Suzuki Kizashi (2010-2013)
Suzuki Grand Vitara (2009-2013)
Subaru Tribeca (2008-2014)
Land Rover LR2 (2008-2012)
Saab 9-3 (2006-2009)
Saab 9-2X (2006)
Mitsubishi Eclipse (2006-2012)
Subaru B9 Tribeca (2006-2007)
Mercedes-Benz CLS55 AMG (2006)
Mercedes-Benz SLR McLaren (2005-2009)
Mercedes-Benz G55 AMG (2005-2011)
Subaru Outback (2005-2019)
Subaru Legacy (2005-2019)
Mitsubishi Galant (2004-2012)
Mitsubishi Outlander (2004-2006)
Subaru Impreza (2004-2014)
Subaru Forester (2004-2013)
Subaru Baja (2004-2006)
Mitsubishi Lancer (2004-2006)
Mercedes-Benz E55 AMG (2003-2006)
Mercedes-Benz SL55 AMG (2003-2008)
Mercedes-Benz S55 AMG (2003-2006)
Mercedes-Benz CL55 AMG (2003-2006)
Mercedes-Benz C230 (2003-2005)

Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
