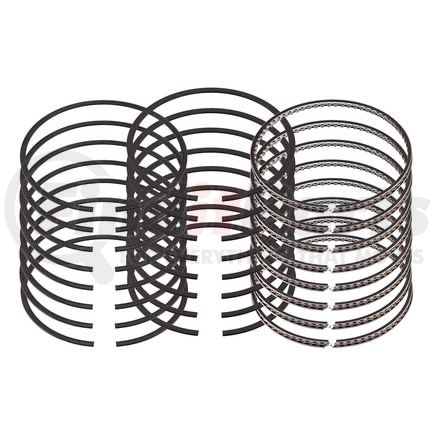

Sealed Power E-1004K - Sealed Power E-1004K Engine Piston Ring Set
- Part Number
- E-1004K
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power E-1004K Engine Piston Ring Set
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
SEALED POWER part description
Product Description
Engine Piston Ring Set
Features & Benefits
- Moly-plasma top ring; surface is porous giving it great oil-carrying capacity; also forms a more effective compression seal while reducing friction and drag
- Second rings seat instantly, properly control inter-ring pressure to improve cylinder sealing, provide efficient piston-to-cylinder heat transfer and aid in effective oil control
- Oil rings are unequalled at controlling oil; design keeps tension uniform while assuring a positive seal
- In the box: compression rings, rails and oil spacer
Product Attributes
| Oversized | No |
| Cylinder Quantity | 8 |
| Bore Diameter | 102.00 MM |
| Oil Ring Design | 3 Piece Flex Vent |
| 2nd Ring Face Design | High Tensil |
| Top Ring Face Design | High Tensil |
| 2nd Ring Material | Ductile Iron w/Phosphate Coating |
| Top Ring Material | Steel w/Moly |
| Oil Ring Width | 2.50 MM |
| 2nd Ring Width | 1.50 MM |
| Top Ring Width | 1.50 MM |
| Top Ring Radial Wall Thickness | 0.141 MM |
| File Fit | No |
| Part Description | Engine Piston Ring Set |
| Ring Set Groove Widths | 1.5 x 1.5 x 2.5 MM |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00019826223326 |
Part Interchanges
Fits Vehicles
- Ford E-350 Super Duty (2017-2019)
- Ford F-350 Super Duty (2011-2019)
- Ford F-250 Super Duty (2011-2019)
- Ford F-150 (2010-2014)
