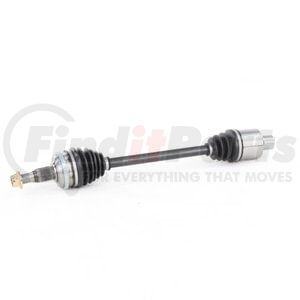

TrakMotive GM8233 - CV Axle Shaft
- Part Number
- GM8233
- Manufacturer
- TRAKMOTIVE
- Description
-
CV Axle Shaft
details
$10049
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
TRAKMOTIVE part description
Product Description
CV Axle Shaft
Product Attributes
| ABS Ring Tooth Count | N/A |
| ABS Ring Type | N/A |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | N/A |
| Inboard Bolt Head Size (mm) | N/A |
| Inboard Bolt Head Type | N/A |
| Inboard Bolt Length (in) | N/A |
| Inboard Bolt Length (mm) | N/A |
| Inboard Bolt Thread Size | N/A |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number of Bolt Holes | N/A |
| Number Of Inboard Joint Bolt Holes | N/A |
| Number Of Inboard Shaft Bolts | N/A |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Joint Bolt Holes | N/A |
| Number Of Outboard Shaft Bolts | N/A |
| Number Of Outboard Splines | 27 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.99 |
| Overall Compressed Length (mm) | 584 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084032331 |
Part Interchanges
- ARC 80-5916
- EMPI 80-1524
- USA Industries 706738
- USA Industries AX-6738
- USA Industries AX6738
- Diversified Shafts Solutions 5276N
- Drive Tech America GM-2089
- CARDONE Reman 60-1418
- CARDONE Reman 66-1418
- CARDONE Reman 66-1418HD
- CARDONE Reman MP1418
- IMC 40720020
- Carquest Premium AC NCV10047
- OEM Part Number 8889644750
- OEM Part Number 88964475
- ODM GC-8-8648
- TrakMotive GM-8233
- ProTech CH10524
- NCV10047
- 80-5916
- 70116
- 179233
TRAKMOTIVE GM8233 Cross Reference
We have 1 alternatives for the GM8233 by TRAKMOTIVE:
Fits Vehicles
- Isuzu i-370 (2007-2008)
- Isuzu i-350 (2006)
- Chevrolet Colorado (2004-2012)
- GMC Canyon (2004-2012)
