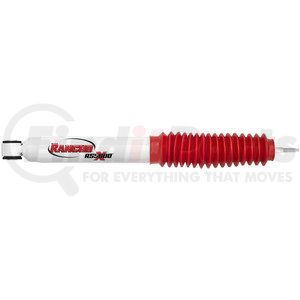

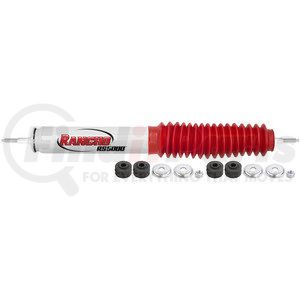

Name: Rancho RS55316 Rancho RS5000X RS55316 Shock Absorber
SKU: rs55316
Price: 80.49 USD
Availability: InStock

RANCHO part description

Product Description

RS5000X Suspension Shock Absorber

Features & Benefits

IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
STRONG AND DURABLE -- Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248degF
SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
REDUCES FADE -- Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
BUY WITH CONFIDENCE -- Comes with Rancho's Limited Lifetime Warranty

Product Attributes

Compressed Length	17.56 IN
Travel Length	11.82 in
Finish	Painted
Grade Type	Performance
Extended Length	29.38 in
Gas Charged	Yes
Adjustable Damping	No
Dust Shield Included	Yes
9783	No
9789	LS38
9791	LS38
9792	No
9801	35 MM
9908	Yes
Body Diameter	2.25
Lower Mount Type	Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL
Part Description	Shock Absorber
Parts Pack(s)	None
Upper Mount Type	Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL

Additional Information

Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
MSDS Sheet Number	01164
UPC	00039703005753
VMRS Code	016008003
UNSPSC	25172011

Part Interchanges

Fits Vehicles

Ford F-150 (2015-2020)
