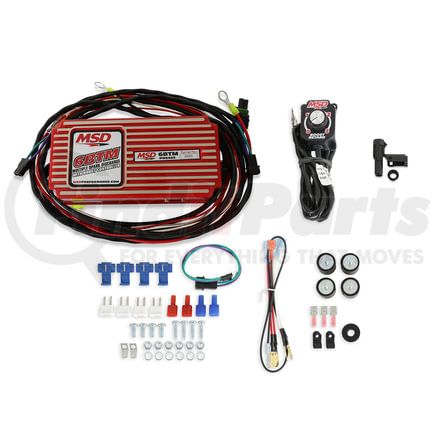

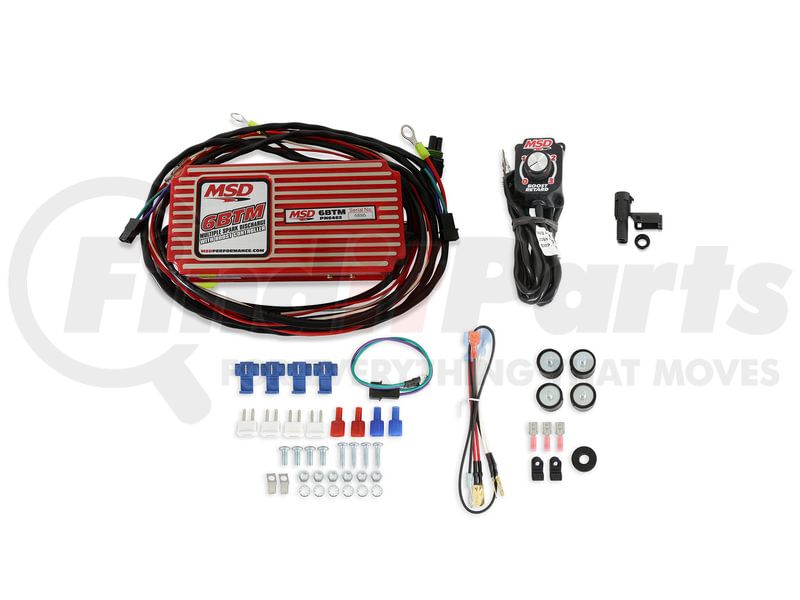

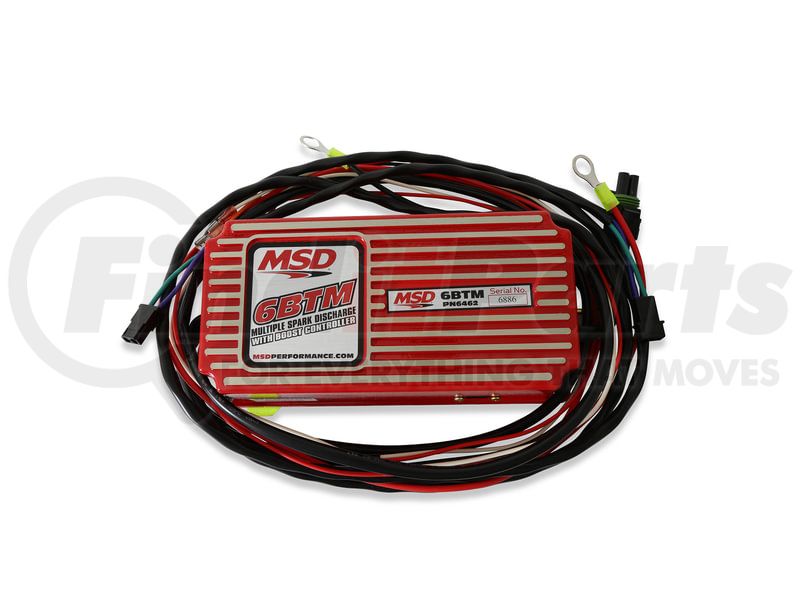

MSD 6462 - 6BTM Series Multiple Spark Ignition Controller

Product Description

6BTM Series Multiple Spark Ignition Controller

Features & Benefits

• Multiple spark; capacitive discharge ignition control
• Supplied w/3000/6000/7000/8000 Amp Rpm Modules

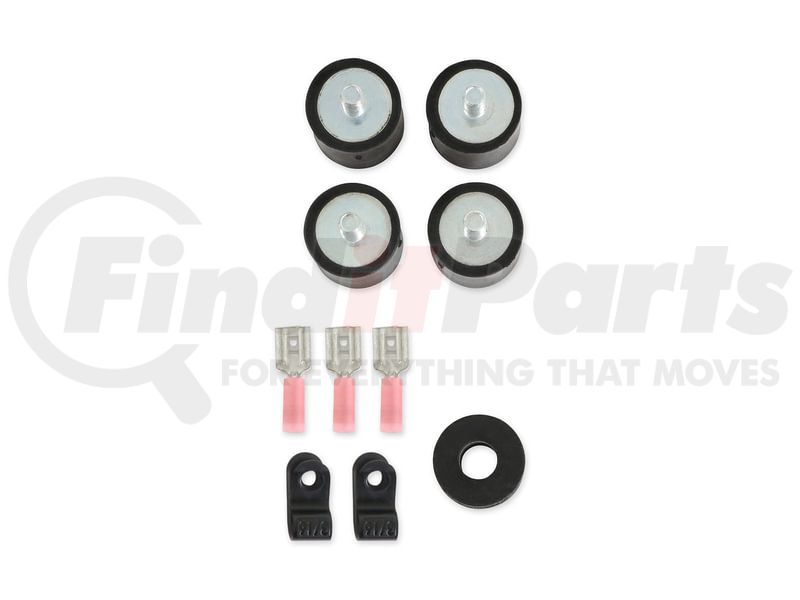

• Supplied w/Rubber Shock Mounts
• Programmable for 4/6/8 cyl. by cutting red/blue wire loops
• Built-In Soft Touch Rev Control Is Adjustable w/Rpm Modules
• 110 Millijoules Per Spark Up To 15000 RPM
• 470 Primary Voltage Output To Coil
• Accepts breaker points/amplifier/magnetic pickup trigger inputs
• Works on 12-18 volt electrical system
• Multiple Sparks For 20 deg. of Crankshaft Rotation
• Retards ignition timing 1-3 deg per/lb. of boost (max. 15 deg.)

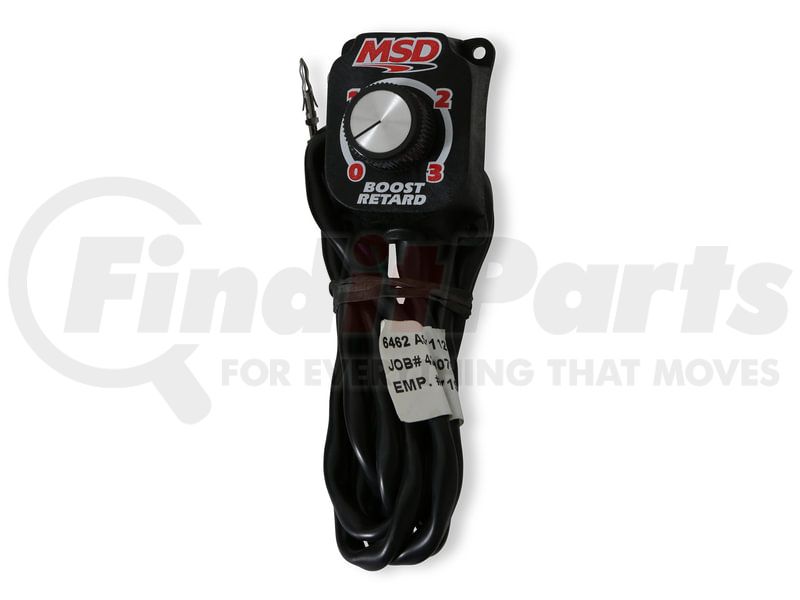

• Dash mounted adjustable control knob

Holley Performance Emission Code 1: This part is legal for sale and use on Emissions Controlled Vehicles; in all 50 states; when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle
