FRAM CH12056 Part Description
Manufacturer
Product Description
FRAM, CH12056, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines

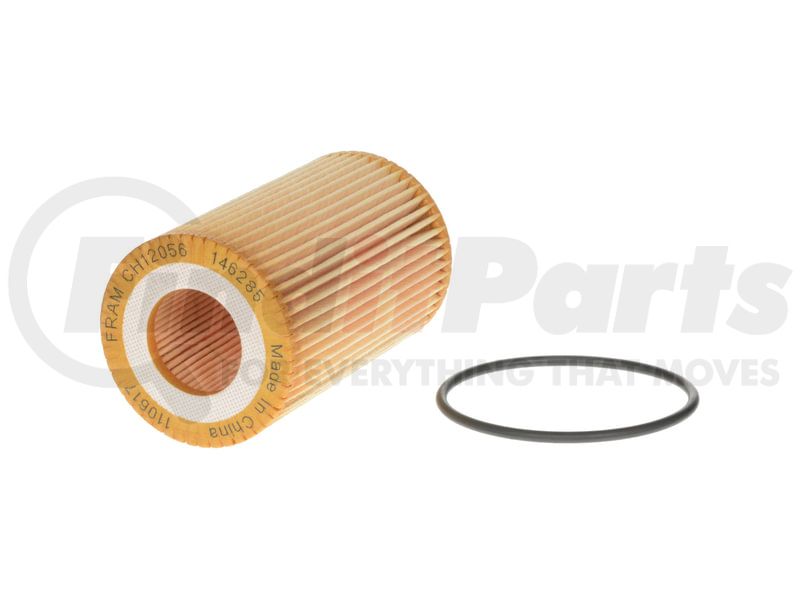

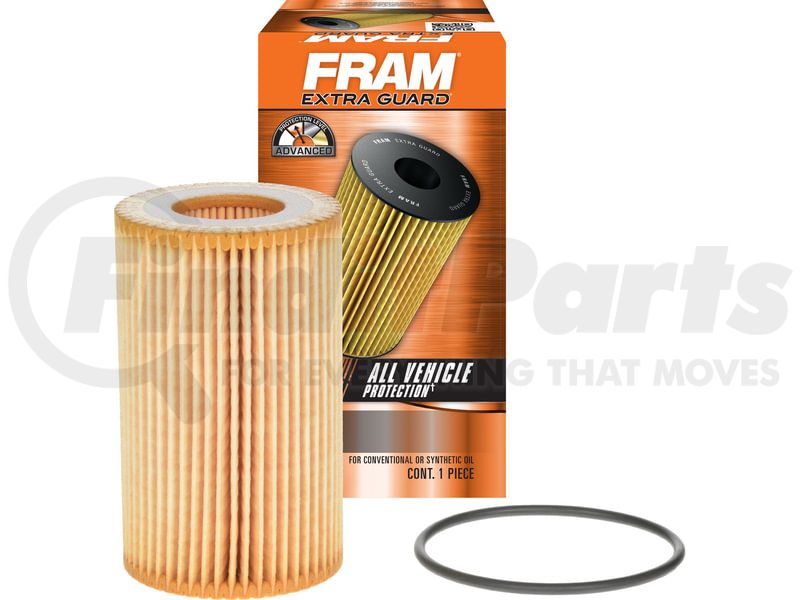

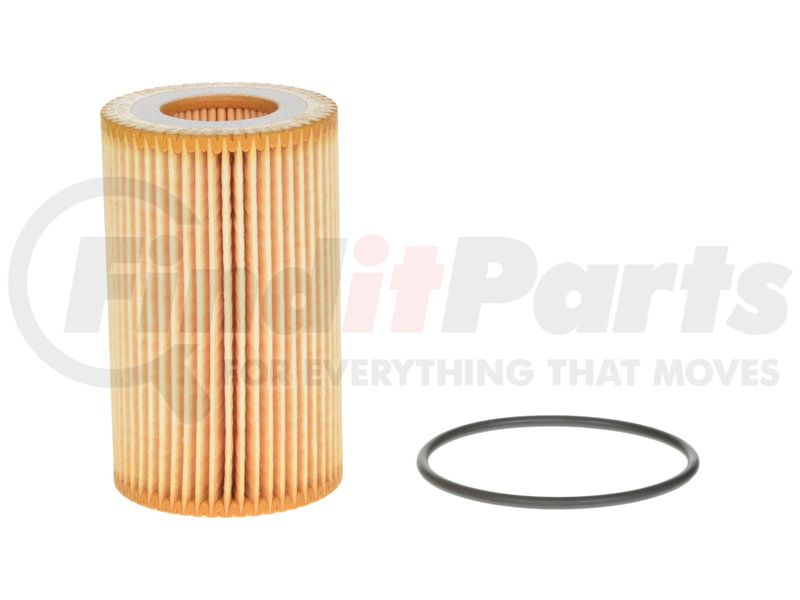

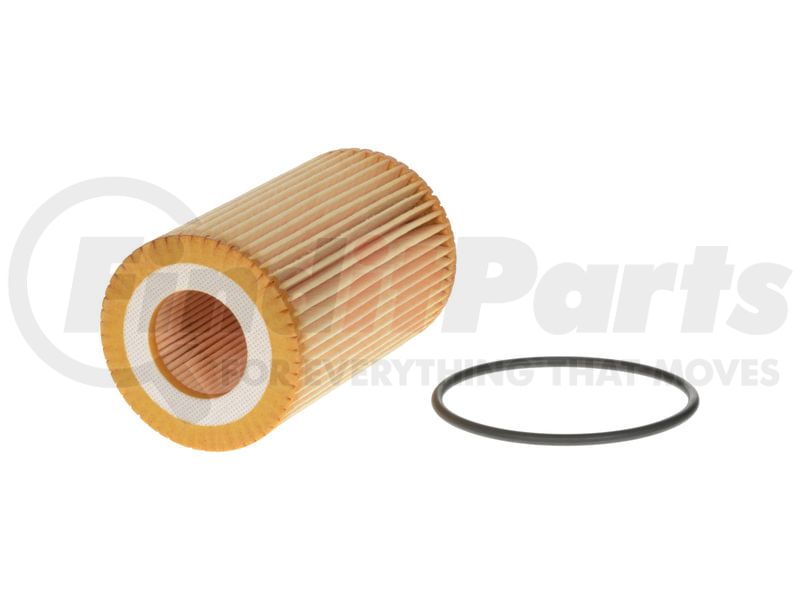

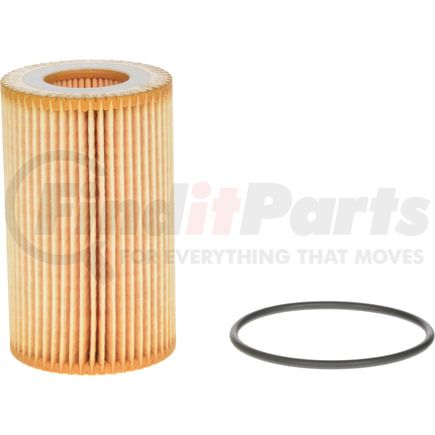

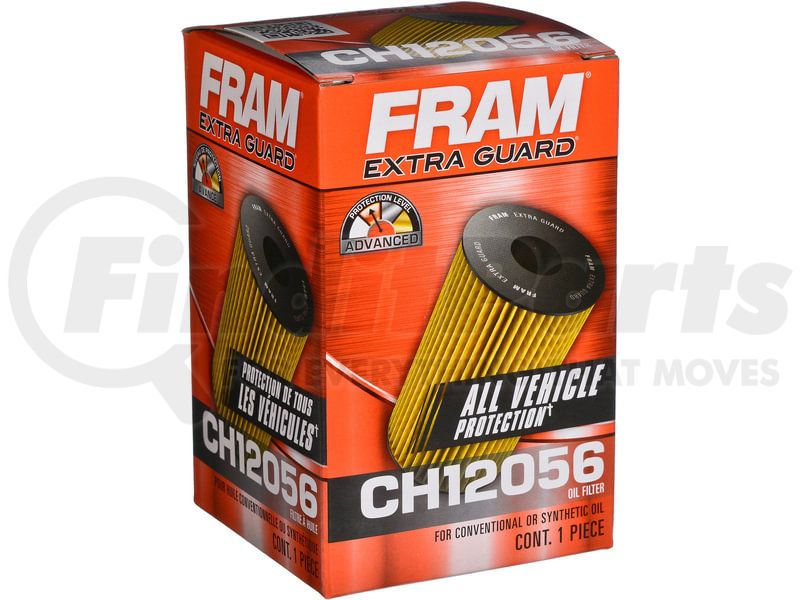

Cartridge Oil Filter
FRAM CH12056 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 4.154 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 1.220 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 2.717 IN |
| O-ring Outside Diameter | 2.855 IN |
| O-ring Thickness | 0.138 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.500 in |
| Outer Diameter Top | 2.500 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 1.220 in |
| Torque Nut | No |
| Washable | No |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100559883 |
| UNSPSC | 15121501 |
FRAM CH12056 Part Interchanges
| Brand | Part Number |
|---|---|
| Purolator | L29169 |
| Wix | WL10223 |
| LUBER-FINER | P1037 |
| Mann-Filter | HU7011Y, HU7011Z, HU7035Y |
| Volkswagen | 06E 115 466B, 06E 115 562B, 06E 115 562E, 06E 115 562H |
| STP Filters | S12056XL |
| Parts Master | WL610345 |
FRAM CH12056 Fits Vehicles
- Suzuki Aerio (2002)
- Audi A6 (2016)
- Audi Q7 (2017-2019)
- Audi A8 Quattro (2015-2018)
- Audi A7 Quattro (2016-2018)
- Audi A6 Quattro (2016-2018)
