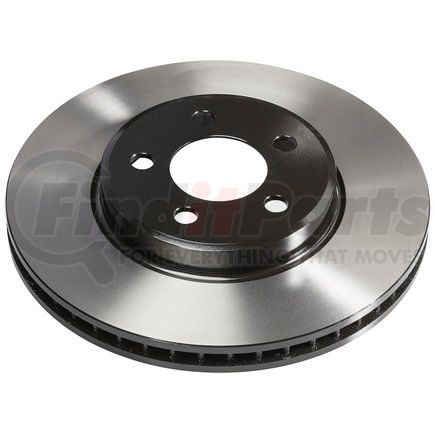

Name: Wagner BD126263E Wagner Brake BD126263E Disc Brake Rotor
SKU: bd126263e
Price: 70.99 USD
Availability: InStock

WAGNER part description

Product Description

Disc Brake Rotor

Application Summary

2005-2019 Chrysler 300 Touring S Limited (Front) (Liter: 5.7, 3.5, 2.7, 3.6 & Engine(cc): 3497, 2736, 3604 & Engine(ci): 345, 215, 167, 220 & Cylinder: 8, 6 & Block: V & Bore(in): 3.92, 3.78, 3.39 & Bore(mm): 99.57, 96.0, 86.0 & Stroke(in): 3.58, 3.19, 3.09, 3.27 & Stroke(mm): 90.93, 81.0, 78.5, 83.0 & Drive: RWD / Qualifier: Except Performance Brakes, Black E-Coat on non-braking surface to prevent rust and corrosion, with Solid Rotors, Except Police/Taxi Packages / Note: 5 Stud Wheel, with 320mm Diameter Rotor); 2009-2020 Dodge Challenger SXT R/T SXT Plus GT (Front) (Liter: 3.5, 3.6, 5.7 & Engine(cc): 3497, 3604 & Engine(ci): 215, 220, 345 & Cylinder: 6, 8 & Block: V & Bore(in): 3.78, 3.92 & Bore(mm): 96.0, 99.57 & Stroke(in): 3.19, 3.27, 3.58 & Stroke(mm): 81.0, 83.0, 90.93 & Drive: RWD / Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion, Except Performance Brakes, 1 Piston Caliper / Note: 5 Stud Wheel, with 320mm Diameter Rotor); 2006-2020 Dodge Charger SE SXT (Front) (Liter: 5.7, 3.5, 2.7, 3.6 & Engine(cc): 3497, 2736, 3604 & Engine(ci): 345, 215, 167, 220 & Cylinder: 8, 6 & Block: V & Bore(in): 3.92, 3.78, 3.39 & Bore(mm): 99.57, 96.0, 86.0 & Stroke(in): 3.58, 3.19, 3.09, 3.27 & Stroke(mm): 90.93, 81.0, 78.5, 83.0 & Drive: RWD / Qualifier: Except Performance Brakes, Black E-Coat on non-braking surface to prevent rust and corrosion, Except Police/Taxi Packages / Note: 5 Stud Wheel, with 320mm Diameter Rotor); 2005-2008 Dodge Magnum (Front) (Liter: 3.5, 2.7 & Engine(cc): 3497, 2736 & Engine(ci): 215, 167 & Cylinder: 6 & Block: V & Bore(in): 3.78, 3.39 & Bore(mm): 96.0, 86.0 & Stroke(in): 3.19, 3.09 & Stroke(mm): 81.0, 78.5 / Qualifier: Except Performance Suspension, Black E-Coat on non-braking surface to prevent rust and corrosion, Except Heavy Duty Brakes / Note: 5 Stud Wheel, with 320mm Diameter Rotor)

Features & Benefits

ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance

Product Attributes

Material	Cast Iron
Nominal Thickness	1.102 IN
Disc Finish	Directional
Construction	Full Cast
Rust Resistant Coating	Yes
Outside Diameter	12.598 IN
Surface Type	Smooth
Solid Or Vented Type Rotor	Vented
Height	2.146 in
Part Description	Disc Brake Rotor
Nominal Thickness	28.0 MM
Outside Diameter	320.0 MM
Height	54.5 MM

Additional Information

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8708305030
Harmonized Tariff Code (HTS)	8708305030
UPC	00008536942085
VMRS Code	013017001
UNSPSC	25171705

Part Interchanges

When it comes to high-quality lighting and braking products for vehicle safety systems, one name stands out—Wagner®. Since 1891, this brand has been developing highly efficient critical components for vehicle safety systems across the globe. Wagner® is renowned for its cutting-edge braking component and technologies for passenger cars and medium-duty and commercial applications. This brand is also at the forefront of lighting products manufacturing since the introduction of the sealed-beam headlamp. Wagner brake parts and lighting products set high industry standards, thanks to its over 125 years of manufacturing experience and engineering expertise and its commitment to developing products that deliver superior performance.

Fits Vehicles

Dodge Challenger (2009-2013, 2017-2020)
Dodge Charger (2006-2020)
Chrysler 300 (2005-2019)
Dodge Magnum (2005-2008)
