Name: Wagner BD125660E Wagner Brake BD125660E Disc Brake Rotor
SKU: bd125660e
Price: 85.49 USD
Availability: InStock

WAGNER part description

Product Description

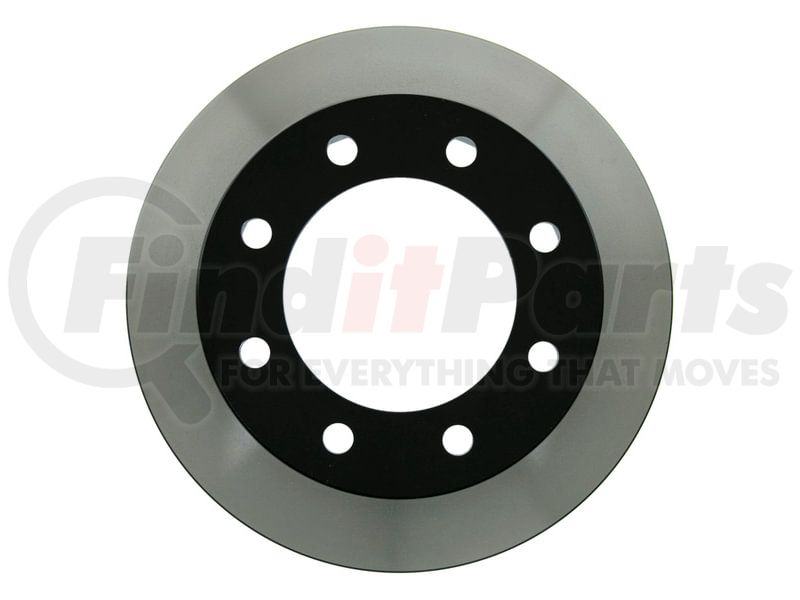

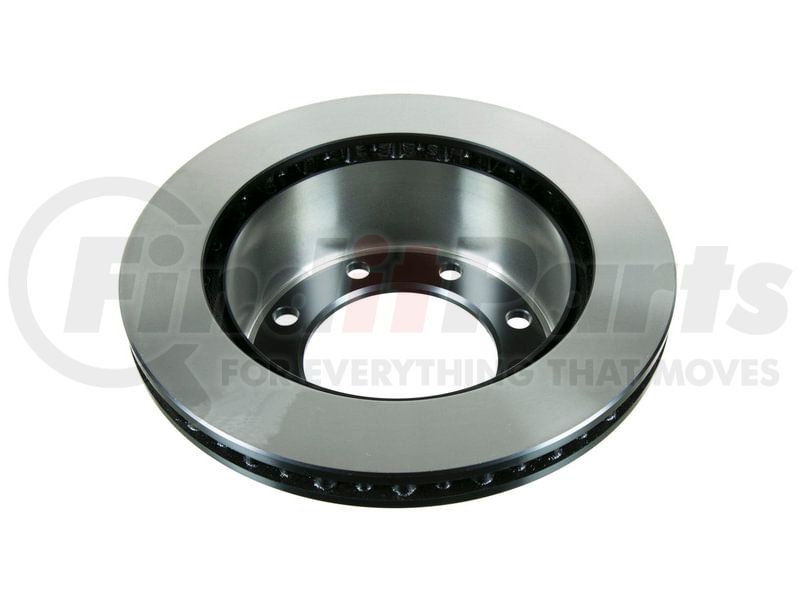

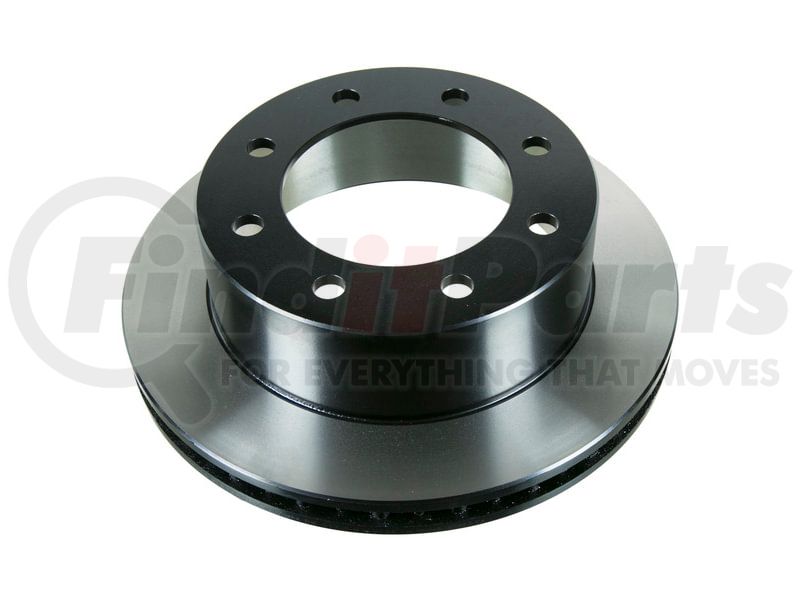

Disc Brake Rotor

Application Summary

2000-2005 Ford Excursion (Rear) (Qualifier: 8 Stud Wheel, with 326 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 1999-2004 Ford F-250 Super Duty (Rear) (Qualifier: 8 Stud Wheel, with 326 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 1999-2004 Ford F-350 Super Duty (Rear) (Qualifier: with Single Rear Wheels (SRW), 8 Stud Wheel, with 326 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion)

Features & Benefits

ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance

Product Attributes

Material	Cast Iron
Nominal Thickness	12.0 MM
Disc Finish	Directional
Construction	Full Cast
Rust Resistant Coating	Yes
Outside Diameter	326.0 MM
Surface Type	Smooth
Solid Or Vented Type Rotor	Vented
Height	3.878 in
Part Description	Disc Brake Rotor
Outside Diameter	12.835 IN
Height	98.5 MM

Additional Information

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8708305030
Harmonized Tariff Code (HTS)	8708305030
UPC	00008536941446
VMRS Code	013017001
UNSPSC	25171705

Part Interchanges

When it comes to high-quality lighting and braking products for vehicle safety systems, one name stands out—Wagner®. Since 1891, this brand has been developing highly efficient critical components for vehicle safety systems across the globe. Wagner® is renowned for its cutting-edge braking component and technologies for passenger cars and medium-duty and commercial applications. This brand is also at the forefront of lighting products manufacturing since the introduction of the sealed-beam headlamp. Wagner brake parts and lighting products set high industry standards, thanks to its over 125 years of manufacturing experience and engineering expertise and its commitment to developing products that deliver superior performance.

Fits Vehicles

Ford F-350 Super Duty (1999-2004)
Ford F-250 Super Duty (1999-2004)
Ford Excursion (2000-2005)
