(888) 312-8812 Login SignupWAGNER BD126536E Wagner Brake BD126536E Disc Brake Rotor
Tap to view 2 more
MSRP: $133.11
$8049
Save $52.62
Limited availability at this price!
In Stock
Get it by Friday, Jan 2

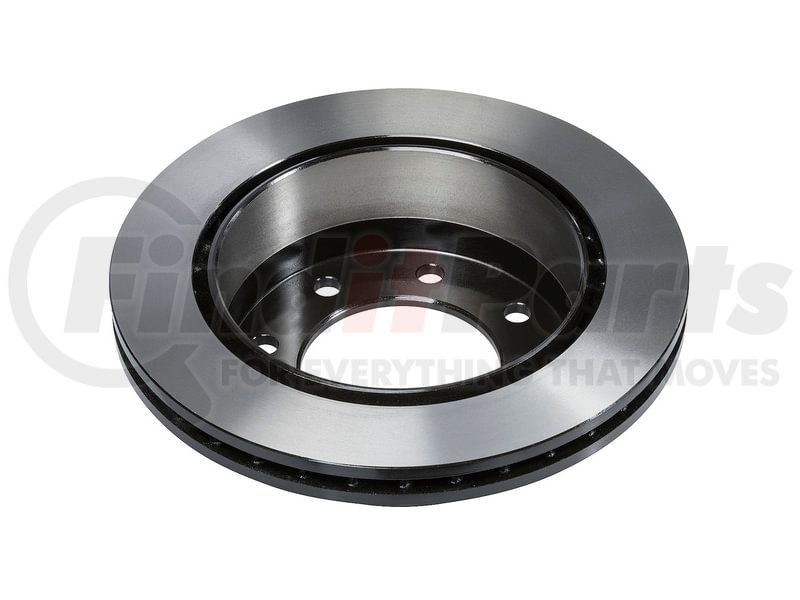

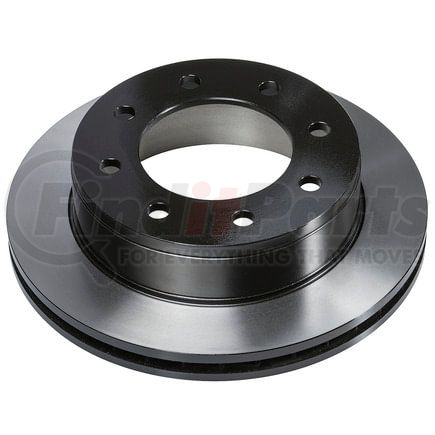

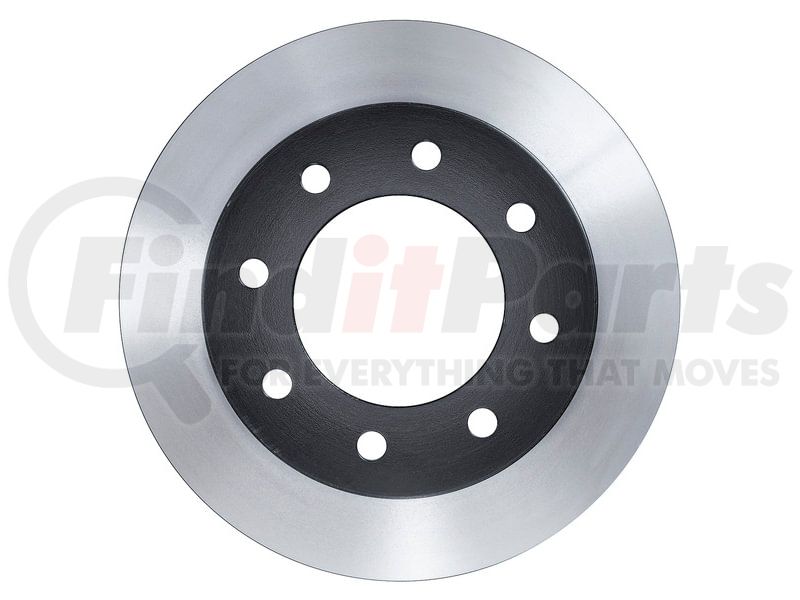

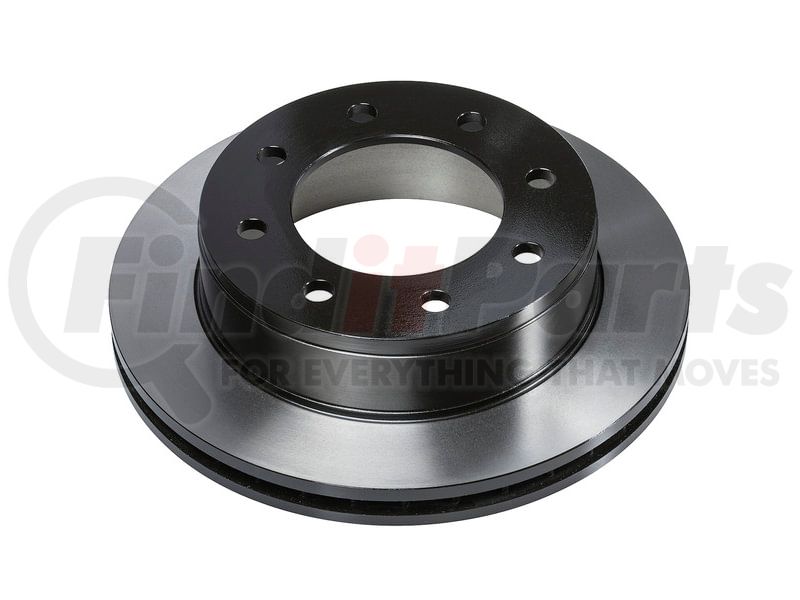

WAGNER BD126536E Part Description
Manufacturer
Product Description
Disc Brake Rotor
Application Summary
2008-2021 Chevrolet Express 2500 (Rear) (Liter: 6.0, 4.8 & Engine(cc): 5967 & Engine(ci): 364, 294 & Cylinder: 8 & Block: V & Bore(in): 4.00, 3.78 & Bore(mm): 101.6, 96.0 & Stroke(in): 3.62, 3.27 & Stroke(mm): 92.0, 83.0 / Qualifier: with Vehicle Stability Control, 8 Stud Wheel, 165 (mm) Bolt Circle, with 330 (mm) Diameter Rotor, with 89.4 (mm) Overall Rotor Height, with 117.6 (mm) Pilot Hole, Black E-Coat on non-braking surface to prevent rust and corrosion, 3.42 Ratio); 2006-2021 Chevrolet Express 3500 (Rear) (Body: Cutaway Van, Standard Passenger Van & Liter: 4.8, 6.0 & Engine(cc): 5967 & Engine(ci): 294, 364 & Cylinder: 8 & Block: V & Bore(in): 3.78, 4.00 & Bore(mm): 96.0, 101.6 & Stroke(in): 3.27, 3.62 & Stroke(mm): 83.0, 92.0 & Wheel Base: 139.0, 135.0 / Qualifier: without Limited Slip Differential, with Single Rear Wheels (SRW), 8 Stud Wheel, 165 (mm) Bolt Circle, with 330 (mm) Diameter Rotor, with 89.4 (mm) Overall Rotor Height, with 117.6 (mm) Pilot Hole, Black E-Coat on non-braking surface to prevent rust and corrosion, 3.42 Ratio); 2021 GMC Savana 4500 (Rear) (Qualifier: with Single Rear Wheels (SRW), 8 Stud Wheel, 165 (mm) Bolt Circle, with 330 (mm) Diameter Rotor, with 89.4 (mm) Overall Rotor Height, with 117.6 (mm) Pilot Hole, Black E-Coat on non-braking surface to prevent rust and corrosion); 2013-2021 GMC Savana 2500 (Rear) (Fuel: FLEX, CNG / Qualifier: 8 Stud Wheel, 165 (mm) Bolt Circle, with 330 (mm) Diameter Rotor, with 89.4 (mm) Overall Rotor Height, with 117.6 (mm) Pilot Hole, Black E-Coat on non-braking surface to prevent rust and corrosion, 3.42 Ratio); 2005-2021 GMC Savana 3500 (Rear) (Qualifier: with Single Rear Wheels (SRW), 8 Stud Wheel, 165 (mm) Bolt Circle, with 330 (mm) Diameter Rotor, with 89.4 (mm) Overall Rotor Height, with 117.6 (mm) Pilot Hole, Black E-Coat on non-braking surface to prevent rust and corrosion, without Limited Slip Differential, 3.42 Ratio)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
WAGNER BD126536E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 1.145 IN |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 12.999 IN |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Height | 3.377 in |
| Part Description | Disc Brake Rotor |
| Nominal Thickness | 29.0 MM |
| Outside Diameter | 330.1 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536957546 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD126536E Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 580380, 580380R |
| General Motors | 15127537 |
WAGNER BD126536E Fits Vehicles
- GMC Savana 4500 (2021)
- GMC Savana 2500 (2013, 2016-2021)
- Chevrolet Express 2500 (2008-2009, 2013-2021)
- Chevrolet Express 3500 (2006-2021)
- GMC Savana 3500 (2005-2014, 2016-2021)
WAGNER BD126536E Customer Reviews
No reviews yet
Be the first to review this product!
WAGNER BD126536E Manufacturer Information
When it comes to high-quality lighting and braking products for vehicle safety systems, one name stands out—Wagner®. Since 1891, this brand has been developing highly efficient critical components for vehicle safety systems across the globe. Wagner® is renowned for its cutting-edge braking component and technologies for passenger cars and medium-duty and commercial applications. This brand is also at the forefront of lighting products manufacturing since the introduction of the sealed-beam headlamp. Wagner brake parts and lighting products set high industry standards, thanks to its over 125 years of manufacturing experience and engineering expertise and its commitment to developing products that deliver superior performance.
