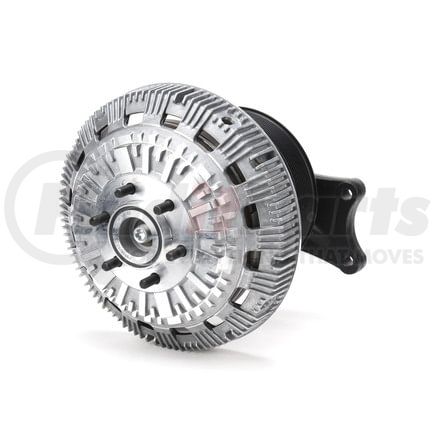

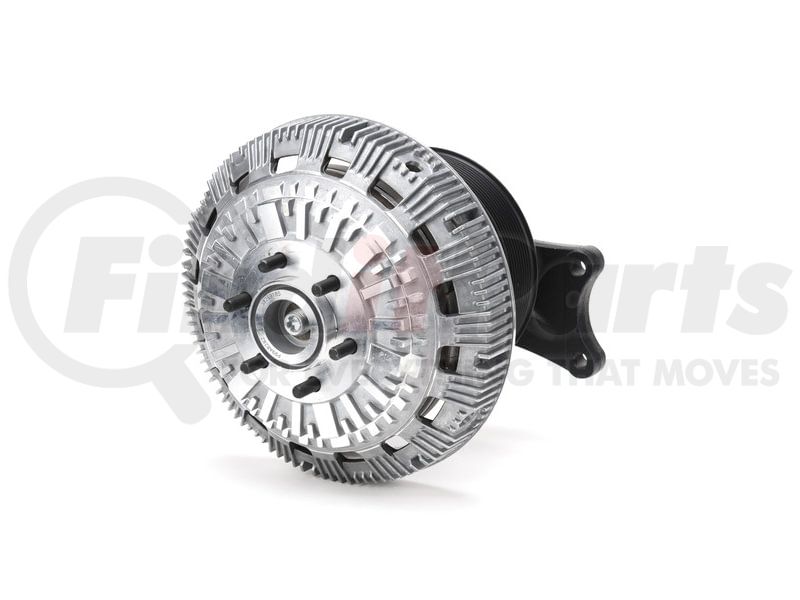

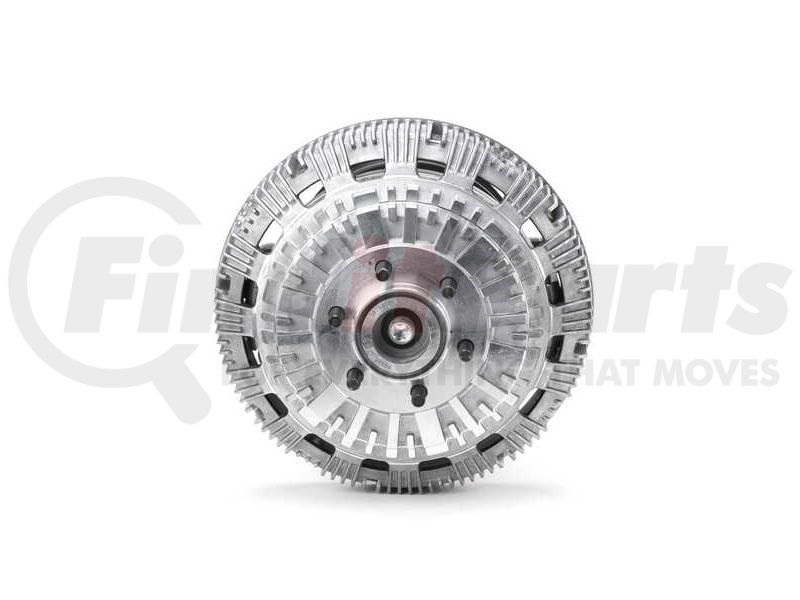

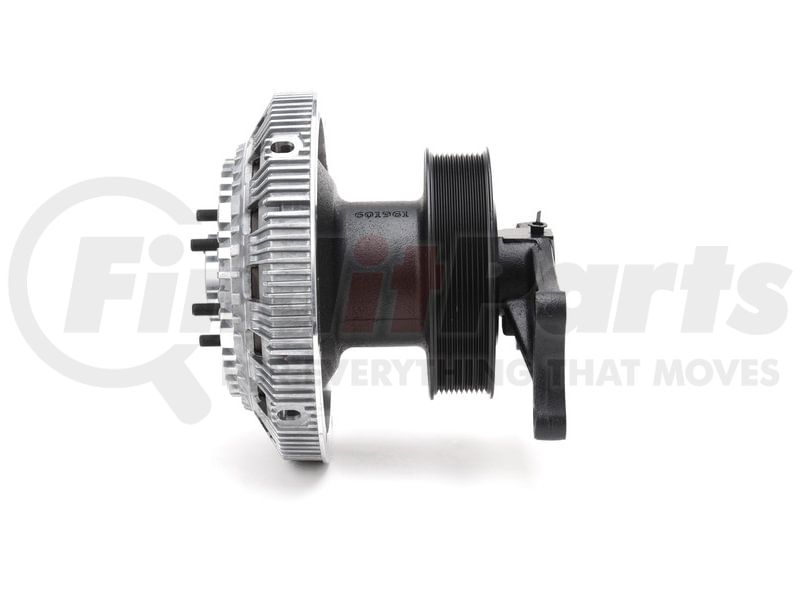

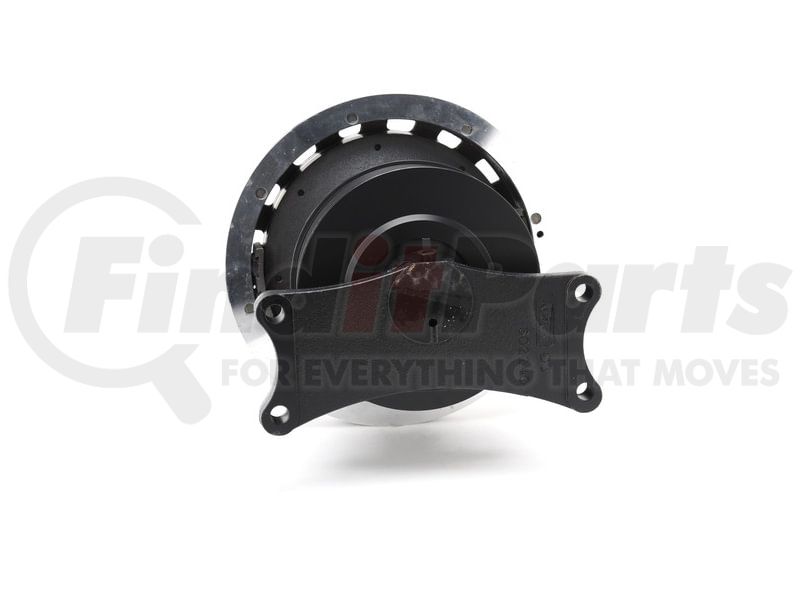

HORTON 99A8262 DM Advantage Two-Speed Fan Clutch

Name: Horton 99A8262 DM Advantage Two-Speed Fan Clutch
SKU: 99a8262
Price: 2960.49 USD
Availability: InStock

Tap to view 3 more

MSRP: $3,827.50

$2,960.49

Save $867.01

+$500.00 core deposit
Total price w/ core: $3,460.49

Limited Availability

Due to limited availability, we will confirm your order and notify you within 1 business day.

No Hassle Return Policy Details

Free Economy shipping on orders over $499 details

Orders placed before 5pm EST usually ship the next business day

HORTON 99A8262 Part Description

DM Advantage Two-Speed Fan Clutch

FREIGHTLINER, WESTERN STAR

Low eddy-current speeds reduce noise, increase available horsepower, conserve fuel and minimize radiator abrasion
Higher, spring-actuated fan speeds make sure necessary cooling is delivered
Faster engine warm-ups in cold weather
Premium bearings and friction liners
High torque for turning large fans
Lower parts count for easy installation and maintenance

Two-speed fan clutch, fan clutch, engine cooling, fan drive, performance, cooling system, horsepower, performance

BACK PULLEY DIAMETER	6.85 IN
BELT CONFIGURATION	10PK
Belt Groove Location	1.98 IN
BOLT CIRCLE	3.5 IN
Center of JB To Top Right Mounting Hole	0.05 IN
Fan Blade Stud Length	0.81 IN
FAN PILOT DIAMETER	2.56 IN
Heavy Duty	TRUE
HORIZONTAL MOUNTING DISTANCE	8.66 IN
Overall Length	9.12 IN
Stud Thread Size	.375-24 UNF IN
VERTICAL MOUNTING DISTANCE	2.83 IN

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8483604040
Harmonized Tariff Code (HTS)	8483604040
OEM's Part Number	98A8262
Warranty Distance	300000
Warranty Distance UOM	DH
Warranty Special	7500 Hours
Warranty Special UOM	TX
Warranty Time	36
Warranty Time UOM	MO
VMRS Code	042003131
