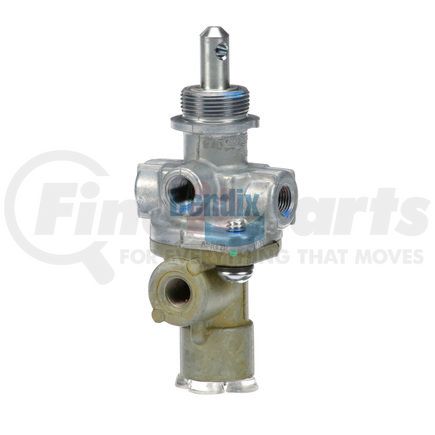

Bendix OR276462 - PP-2® Push-Pull Control Valve - CORELESS, Remanufactured, Push-Pull Style
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
BENDIX part description
Product Description
CORELESS VALVE
Features & Benefits
- A push-pull manually operable on-off air control valve with an exhaust function
- With an auxiliary port that can be plumbed into a service brake line to release the spring brakes when a service application is made
- Designed to automatically move from the applied to the exhaust position when the supply pressure is reduced to a certain minimum
- Stringently evaluated to ensure the highest level of quality and efficiency
- All Bendix valves help save on maintenance and repair costs and reduce downtime
Courtesy of Bendix – All rights reserved
Bendix PP-2 Air Brake Pressure Protection Valve
A part of Bendix's comprehensive range of coreless valves, the Bendix PP-2 air brake pressure protection valve is a genuine Bendix remanufactured valve, but it does not require the return of the old valve core. It goes through stringent remanufacturing processes to meet or exceed OEM specifications in form, fit, and function.
Product Attributes
| Mounting Hardware Included | No |
| Mounting Hole Diameter | 7/8-20 in. UNEF-2A |
| Control Port Diameter | 1/8-27 in. NPT |
| Delivery Port Diameter | 1/8-27 in. NPT |
| Maximum Operating Temperature | 200 °F (93 °C) |
| Minimum Operating Temperature | -40 °F (-40 °C) |
| New Or Remanufactured | Remanufactured |
| Notes | CORELESS; Vent Exhaust Port; Plunger/Button Height: 1.12 in.; Plunger Diameter: 0.374 in. |
| Release Pressure | 40 PS |
| Series | PP-2® |
| Supply Port Diameter | 1/8-27 in. NPT |
| Type | Push-Pull Style |
Additional Information
| Core Class | 7A |
| Core Group | 74 |
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8481200070 |
| VMRS Code | 013010014 |
Part Interchanges
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.BENDIX OR276462 Cross Reference
We have 2 alternatives for the OR276462 by BENDIX:
