CENTRIC 120.86019 Part Description
Manufacturer
Product Description

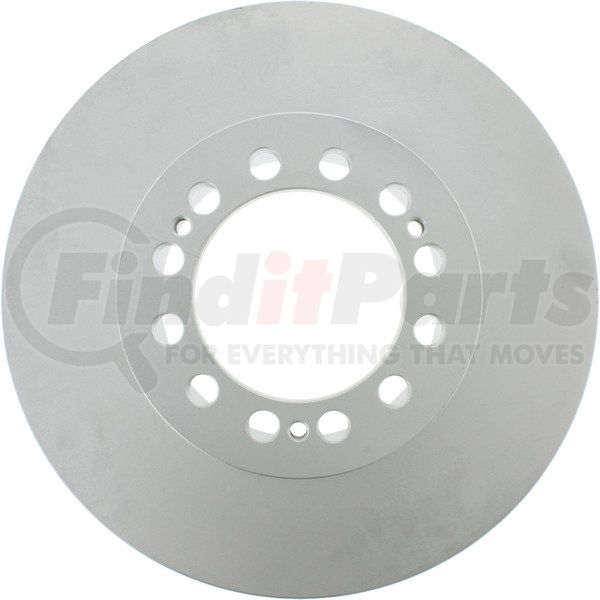

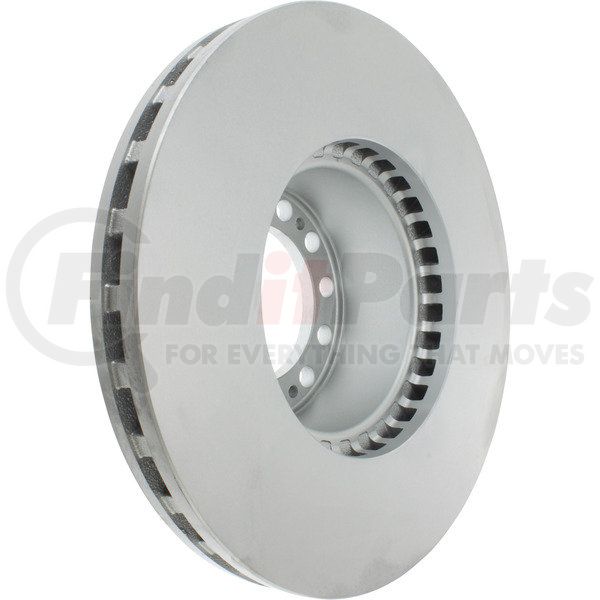

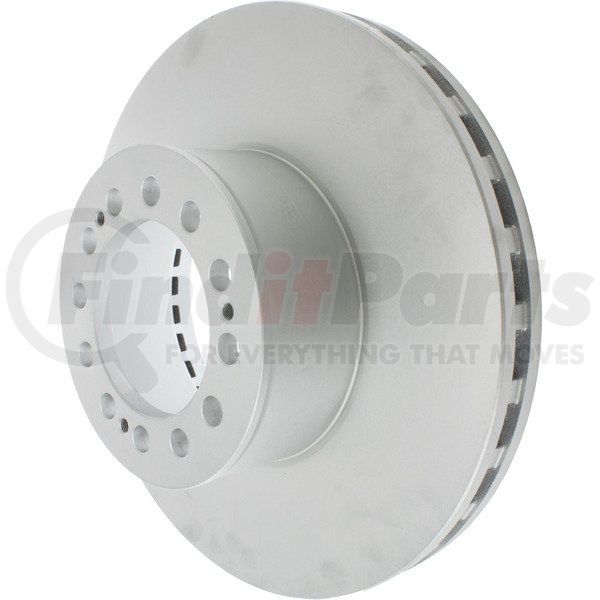

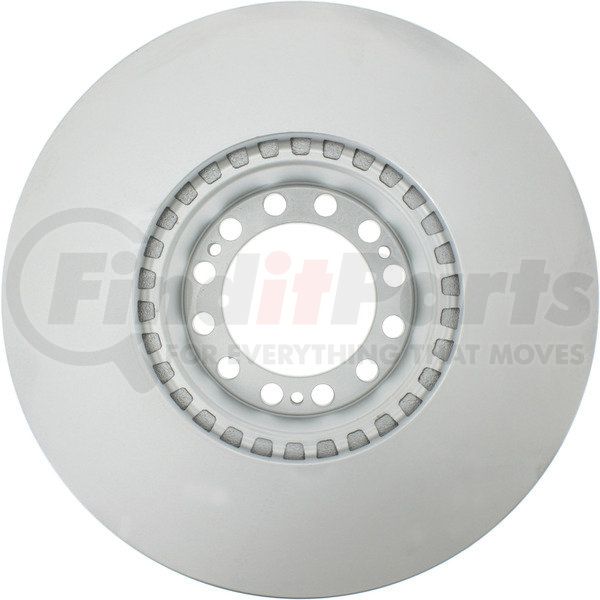

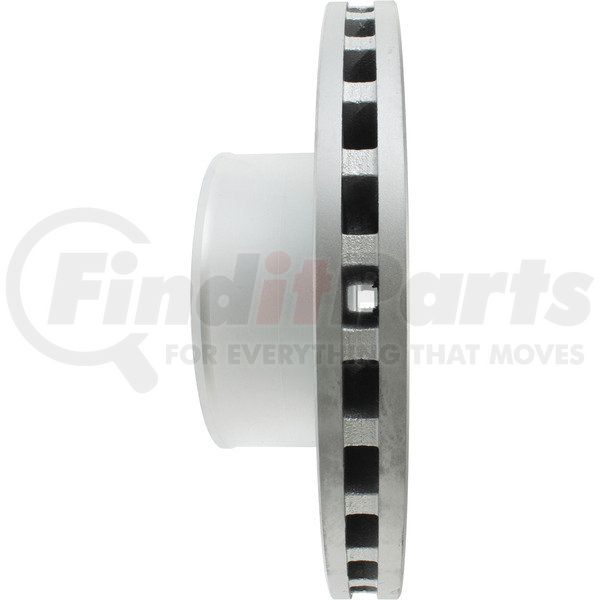

Centric Air Disc Brake Rotor SK7
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
CENTRIC 120.86019 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Notes [cntrc] | Hat Shaped |
| Hat Id [cntrc] Mm | 196.700 |
| Weight [cntrc] Kgs | 34.560 |
| Disc Mounting [cntrc] | Behind the Hub |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 3 |
| Hat Id [cntrc] In | 7.744 |
| Weight [cntrc] Lbs | 76.200 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 1.457 IN |
| Discard Thickness | 37.000 MM |
| Nominal Thickness | 45.000 MM |
| Nominal Thickness | 1.772 IN |
| Overall Height | 130.048 MM |
| Overall Height | 5.120 IN |
| Outside Diameter | 434.340 MM |
| Outside Diameter | 17.100 IN |
| Mounting Bolt Hole Quantity | 12 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 130.800 MM |
| Center Hole Diameter | 5.150 IN |
| Mounting Bolt Hole Circle Diameter | 167.890 MM |
| Mounting Bolt Hole Circle Diameter | 6.610 IN |
| Mounting Bolt Hole Diameter | 19.400 MM |
| Mounting Bolt Hole Diameter | 0.750 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Country of Origin (Primary) | CN |
| UPC | 889590311266 |
CENTRIC 120.86019 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | 567408J, K069799, AMR2235N, 55040P, MBR5057, M44D76621, 120.86019, 81508030023, 81508030031, 81508030038, 81508030040, 81508033040, 76621, 09738220, 09943510, 98200087201, 93087200, 6347297, N508030038, N508030040, ATR434130130, 187052, CSD17A30, FCR214A, M6041V, 23620010, MD1023 |
CENTRIC 120.86019 Fits Vehicles
- MAN TGS (2015-2017)
- MAN TGX (2015-2018)
CENTRIC 120.86019 Cross References
We have 1 alternatives for the 120.86019 by CENTRIC:
