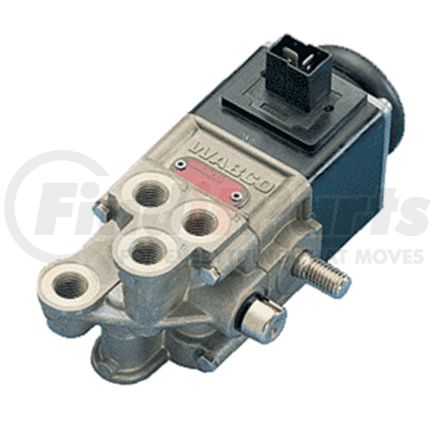

(888) 312-8812 Login SignupWABCO 4720174800 Air Brake Solenoid Valve
Tap to view 1 more
MSRP: $6,167.33
$4,83999
Save $1,327.34
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
WABCO 4720174800 Part Description
WABCO 4720174800 Specifications
Product Attributes
| Voltage | 24 V |
| Calculated Volume (dm³) | 0.99666 |
| Max. operating pressure | 8.0 bar |
| Electrical connection | 6.3 DIN 46 247 |
| Port thread 11 | M12 x 1.5 |
| Port thread 21 | M12 x 1.5 |
| Port thread 23 | M12 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 24 | M12 x 1.5 |
| Size | 158 x 83 x 76 |
| Nominal Diameter | 3.0 mm |
| Temperature Range | -40°C to +80°C |
| Port thread 3 | Ø 3 mm |
| Port thread 3 | Ø 3 mm |
| Rated current | 2100 mA |
| Protection class | IP 66 |
| Port thread 12 | M12 x 1.5 |
| Weight | 2.2399 |
| Type | Normally Open |
| Port Thread 5 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
WABCO 4720174800 Cross References
We have 56 alternatives for the 4720174800 by WABCO:
- SCHMITZ 86331010000
- DAF 1505084
- 1506132
- IVECO 4751117
- 42323618
- 04751117
- MERCEDES-BENZ 0007600378
- MAN 81749206017
- 81749209017
- NEOPLAN 240612400
- 24061240099
- RENAULT 5021170193
- MERITOR S4720174800
- WABCO S4720174800
- DAF 1506132
- DIMETAL 4609166
- EVOBUS A000763255280
- EVOBUS 8633101000
- EVOBUS A00076325520080
- FREIGHTLINER TDAS4720174800
- IRISBUS 4751117
- IVECO 04751117
- IVECO 8174
- IVECO 42542323
- EVOBUS A0007600378
- IVECO 42313618
- IVECO 42323618
- IVECO 0007600378
- IVECO 81521706140
- KENWORTH S472-017-480-0
- KÄSSBOHRER 86331010000
- MACK 6300-4720174800
- MAN 42542323
- MAN 8174
- MAN 0007600378
- MAN 81521706140
- MERCEDES-BENZ 81521706140
- MERCEDES-BENZ 8174
- MERCEDES-BENZ 42542323
- MERCEDES-BENZ A0007600378
- MERCEDES-BENZ 0007632552
- MERCEDES-BENZ 000763255280
- MERCEDES-BENZ 00076325520080
- MERCEDES-BENZ A00076325520080
- NEOPLAN 11047741
- NEOPLAN 24061230099
- NEOPLAN 81749206017
- PETERBILT S472-017-480-0
- OTOKAR 14C0156483AA
- SOLARIS 2406124000
- SOLARIS 2401252000
- VDL BUS 190257
- VDL BUS 20190257
- VOLVO WAB4720174800
- YUTONG 350602749
- VOLVO TDAS4720174800
WABCO 4720174800 Customer Reviews
No reviews yet
Be the first to review this product!
WABCO 4720174800 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
