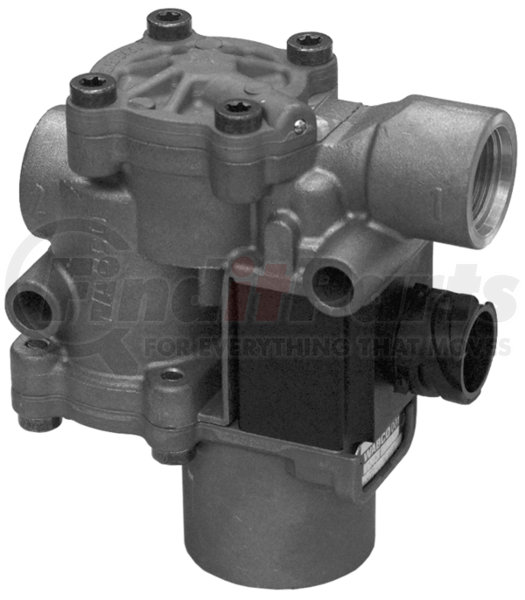

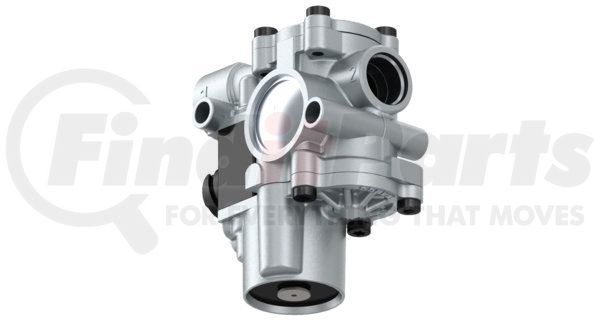

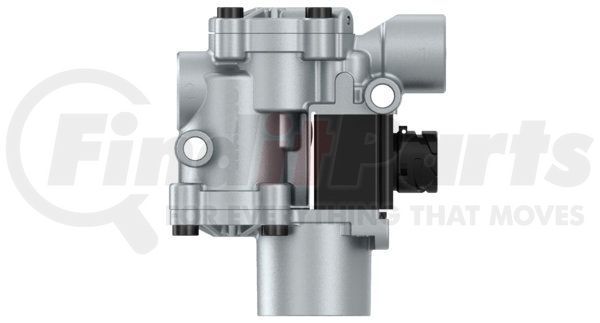

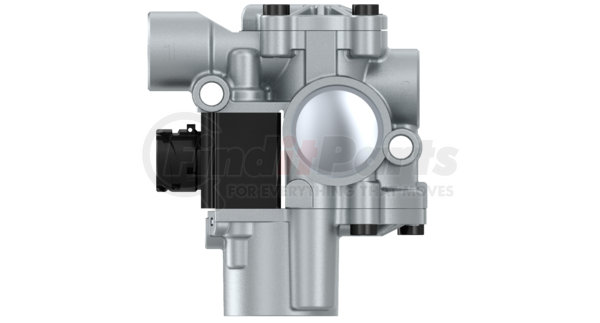

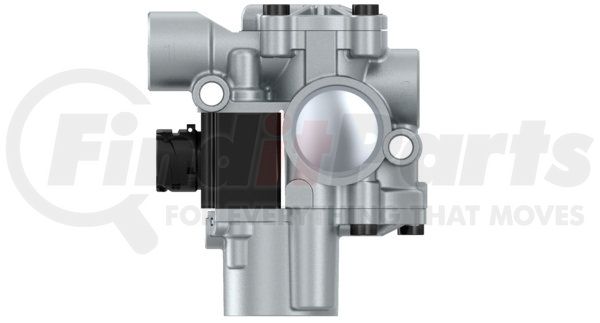

(888) 312-8812 Login SignupWABCO 4721950160 ABS Modulator Valve - 24 Volt Bayonet DIN 72585 A1-3.1-Sn/K1
Tap to view 3 more
MSRP: $1,237.68
$93399
Save $303.69
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
WABCO 4721950160 Part Description
WABCO 4721950160 Specifications
Product Attributes
| Calculated Volume (dm³) | 0.74423 |
| Weight | 1.508 |
| Voltage | 24 V |
| Mounting | 2x Ø 8.5 mm |
| Distance Between Holes | 71x20 mm |
| Rated current | 1650 mA |
| Max. operating pressure | 11.0 bar |
| Port threads | M22 x 1.5 JED-388 |
| Size | 59 x 106 x 119 |
| Protection class | IP 67 / IP 69K EN 60529 / IEC 529 |
| Temperature Range | -40°C to +80°C |
| Electrical connection | Bayonet DIN 72 585 A1-3.1-Sn/K1 |
| Exhaust | Flap |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 2 | M22 x 1.5 JED - 152 |
WABCO 4721950160 Cross References
| Brand | Part Number |
|---|---|
| 1304635, 81524525019 | |
| ALEXANDER DENNIS | 6575332 |
| CNHTC | WG90003605151, AZ87355000100, WG9000360515/1, WG90003605152 |
| DAF | 1505210, 1304635 |
| ERF | 4082200 |
| EVOBUS | A0044296544 |
| FAW | 355031050A |
| FOTON | 1417135900001, H4356D02001A0, 1612135900002, 1419335676004, L0356012003A0 |
| HINO | 899960117A |
| KENWORTH | S472-195-016-0 |
| LEYLAND-DAF | 1304635, ABRA143 |
| MACK | 6300-4721950160 |
| MAN | 81524526019, 81524525019, 81524526038, ZG110050007, 4721950160, 0044296544, 4082200, 5010143058 |
| MERCEDES-BENZ | 0044296544, A0044296544, 81524526038, 5010143058 |
| MERITOR | S4721950160 |
| NEOPLAN | 81524526019 |
| PACCAR | 1505210 |
| PETERBILT | S472-195-016-0 |
| RENAULT | 5010143058, 81524526038, 0044296544 |
| SCANIA | 1934974 |
| VDL BUS | 20252300 |
| VOLVO | WAB4721950160, WA4721950160 |
WABCO 4721950160 Customer Reviews
No reviews yet
Be the first to review this product!
WABCO 4721950160 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
