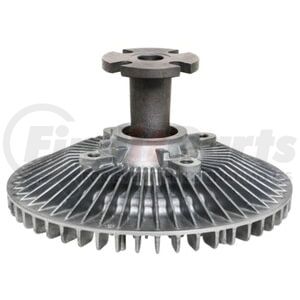

Hayden 2623 - Fan Clutch
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
HAYDEN part description
Features:
- 6 inch thermal
- Designed, tested and built by application
- OE performance, fit and appearance
- Built to meet or exceed original equipment performance
Product Description
Standard Rotation Thermal Standard Duty Fan Clutch
Application Summary
Chevy S10 Blazer (85); S10 Pickup (85) >> GMC S15 Jimmy (85); S15 Pickup (85)
Fan Clutch, Thermal
Product Attributes
| Description | --- - Fan Clutches |
| Original Equipment Replacement? | --- - 'Yes' |
| Performance Rated? | --- - 'Yes' |
| Rotation | --- - STD |
| Drawing Type | --- - B |
| Clutch Type | --- - B - Non-Thermal and Std Thermal |
| Pilot Dia. IN | --- - '0.63' |
| Pilot Depth IN | --- - '1.03125' |
| Pilot Depth MM | --- - '26.162' |
| Mount Dia. IN | --- - '2.59' |
| Fan Mount Height IN | --- - '1.750' |
| Fan Mount Height MM | --- - '44.450' |
| Fan Bolt Circle IN | --- - '3.250' |
| Fan Bolt Circle MM | --- - '82.550' |
| Fan Mount Dia. IN | --- - '2.62' |
| Fan Mount Dia. MM | --- - '66.573' |
| Overall Height IN | --- - '3.078125' |
| Overall Height MM | --- - '78.232' |
| Bolt Thread | --- - M8 x 1.25 Hole |
| Bolt Quantity | --- - '4' |
| Type | --- - Thermal |
| Style | --- - Standard Duty |
| Overall Dia. IN | --- - '5.990' |
| Overall Dia. MM | --- - '152.146' |
| Duty Rating | --- - Standard |
| Meets or Exceeds OEM Specs? | --- - 'Yes' |
| Mount Type | --- - Flange |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708936000 |
| Harmonized Tariff Code (HTS) | 8708935000 |
| Remanufactured Part | N |
| Stock Status | S |
Part Interchanges
