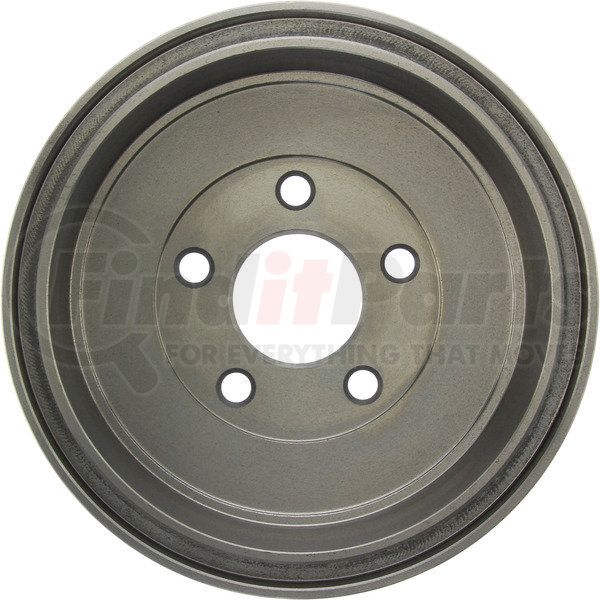

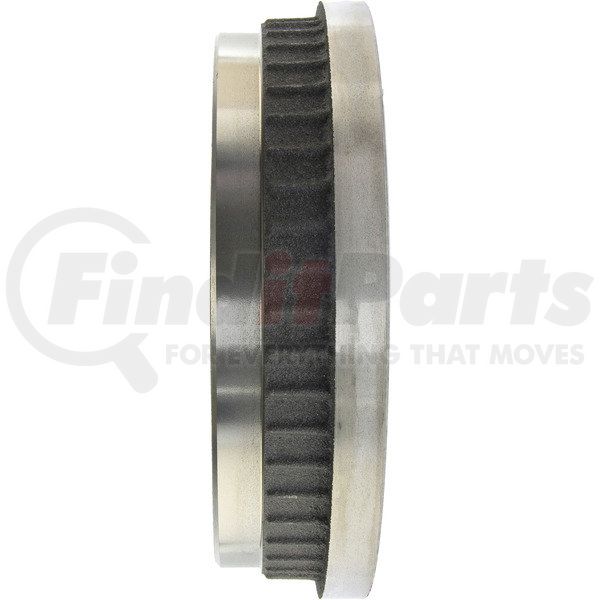

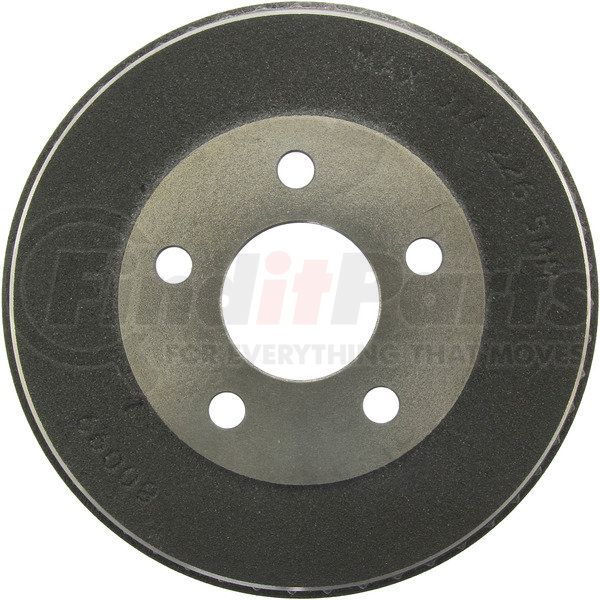

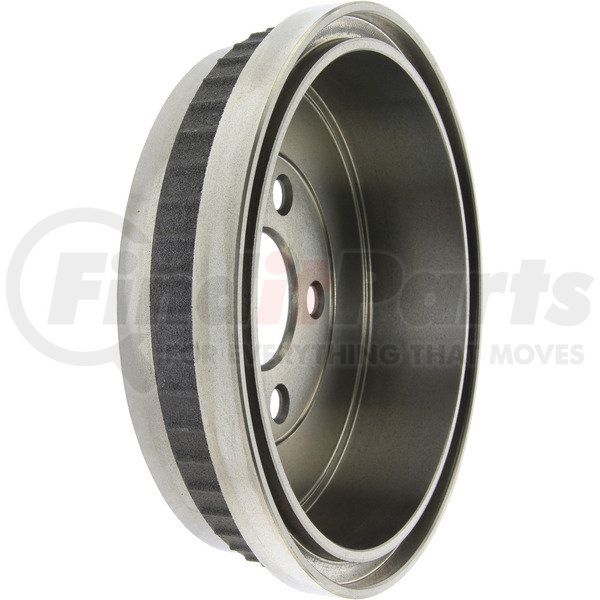

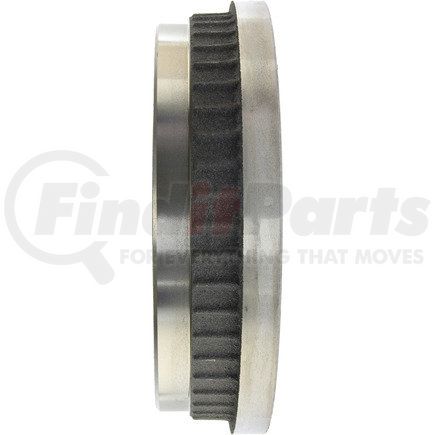

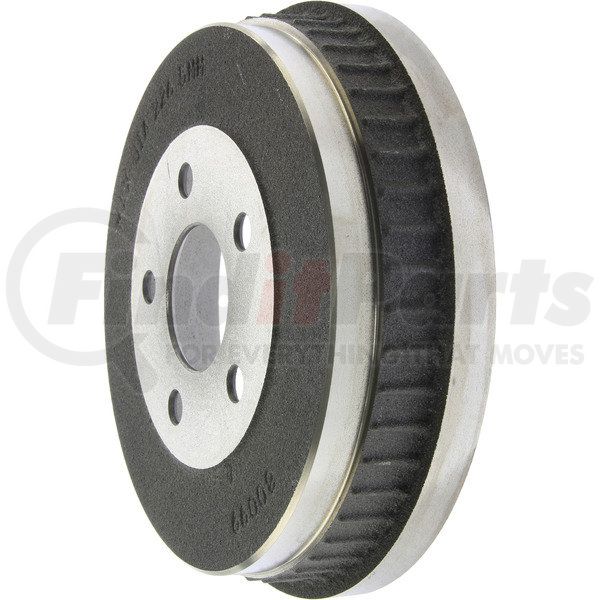

Centric 123.61049 - C-Tek Standard Brake Drum
$3849
MSRP: $41.59
Save: $3.10
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Weight [cntrc] Kgs | 5.636 |
| Weight [cntrc] Lbs | 12.400 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 107.950 |
| Bolt Circle Diameter [cntrc] In | 4.250 |
| Hub Hole / Register [cntrc] Mm | 64.516 |
| Hub Hole / Register [cntrc] In | 2.540 |
| Height [cntrc] Mm | 67.818 |
| Height [cntrc] In | 2.670 |
| Friction Surface Width [cntrc] Mm | 55.118 |
| Friction Surface Width [cntrc] In | 2.170 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 226.550 MM |
| Maximum Brake Diameter (Discard) | 8.919 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 266.954 MM |
| Outside Diameter | 10.510 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.478 MM |
| Mounting Hole Diameter | 0.570 IN |
| Nominal Drum Diameter | 225.000 MM |
| Nominal Drum Diameter | 8.858 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890209768 |
Part Interchanges
CENTRIC 123.61049 Cross Reference
We have 5 alternatives for the 123.61049 by CENTRIC:
Fits Vehicles
- Ford Taurus (2001-2007)
- Mercury Sable (2001-2005)
