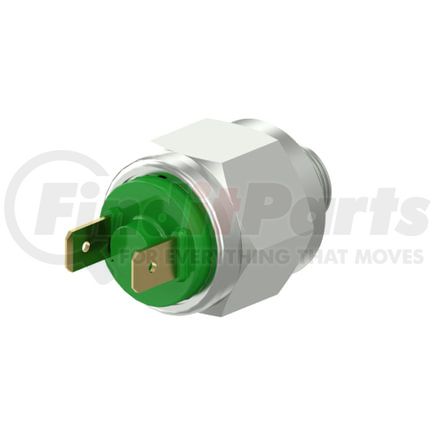

Name: WABCO 4410140150 Air Brake Pressure Switch - 12/24 V, Green, Tab 6.3 x 0.8 IEC
SKU: 4410140150
Price: 147.99 USD
Availability: InStock

WABCO part description

Pressure Switch

Product Attributes

Weight	0.1433
Voltage	12/24 V
Max. operating pressure	12.0 bar
Wrench Size	24.0 mm
Size	44 x 27 x 25
Switch Pressure	5.0±0.5 bar
Protection class	IP00
Thread	M12 x 1.5
Port threads	M12 x 1.5
Electrical connection	Tab 6.3 x 0.8 IEC - 60760 CuZn37, gal . Ag
Calculated Volume (dm³)	0.0297
Type	Normally Closed
Temperature Range	-40°C to +80°C
Color	Green

WABCO 4410140150 Cross Reference

We have 47 alternatives for the 4410140150 by WABCO:

Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
