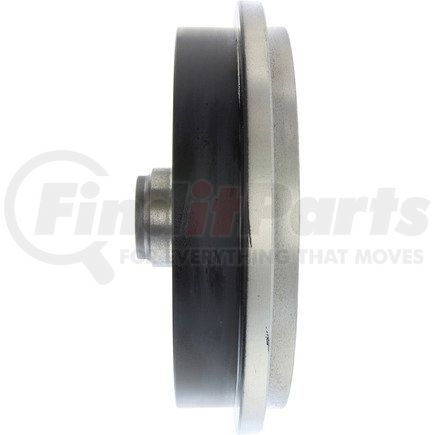

Centric 122.33000 - Centric Premium Brake Drum
$5049
MSRP: $55.39
Save: $4.90
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
Product Attributes
| Weight [cntrc] Kgs | 5.227 |
| Weight [cntrc] Lbs | 11.500 |
| Mounting Type [cntrc] | Hub & Drum |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Stud Thread Pitch [cntrc] Mm | 1.50 |
| Hub Hole / Register [cntrc] Mm | 56.600 |
| Hub Hole / Register [cntrc] In | 2.228 |
| Height [cntrc] Mm | 82.000 |
| Height [cntrc] In | 3.228 |
| Friction Surface Width [cntrc] Mm | 49.500 |
| Friction Surface Width [cntrc] In | 1.949 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 201.000 MM |
| Maximum Brake Diameter (Discard) | 7.913 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 240.000 MM |
| Outside Diameter | 9.449 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.000 MM |
| Nominal Drum Diameter | 200.000 MM |
| Nominal Drum Diameter | 7.874 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890031857 |
Part Interchanges
- Raybestos Brakes 9556R
- Raybestos Brakes 9556
- FT28005
- BD125401
- BD97284
- 0831977
- 480019
- 63 16 230
- 6316230
- 3829
- 3814
- 3814G
- 3829G
- 116010
- 734
- 841501615A
- 191501615A
- 1H0501615A
- 379501615A
- 6QD615601
- 6U0501615
- 6U0501615A
- 6U0501615B
- 331501615
- 115330192
- 5U0501615B
- L1H0501615A
- 323501615
- A113502031
- PDR0563
- 140356
- 140563
- 6401297
- 6401500
- BRD370210
- 963
- DB4014
- DB4127
- EBD002
- D9109
- 100623
- 87137
- YH140563
- A5890
- A5926
- 21022
- 21072
- 14582610
- X30722
- BD1292
- 9109
- 8896000
- 36574000
- 600.1959.00
CENTRIC 122.33000 Cross Reference
We have 2 alternatives for the 122.33000 by CENTRIC:
Fits Vehicles
- Volkswagen Gol (2009-2013, 2016)
- Volkswagen Pointer Truck (1999-2010)
- Volkswagen Pointer (1998-2009)
- Volkswagen Derby (1995-1997)
- Volkswagen Cabrio (1995-1999)
- Volkswagen Jetta (1990-1999)
- Volkswagen Golf (1989-1998)
- Volkswagen Fox (1987-1990)
- Volkswagen Quantum (1982-1988)
- Audi Coupe (1981-1984)
- Volkswagen Rabbit Pickup (1980-1983)
- Audi 4000 (1980-1987)
- Audi Fox (1973-1979)
- Volkswagen Dasher (1974-1981)
