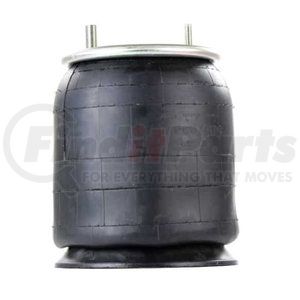

FIRESTONE W013589069 - Airide Air Spring Reversible Sleeve 1T15M-4
$16649
MSRP: $220.40
Save: $53.91
In stock
limited availability at this price!
FIRESTONE part description
California Proposition 65 Warning

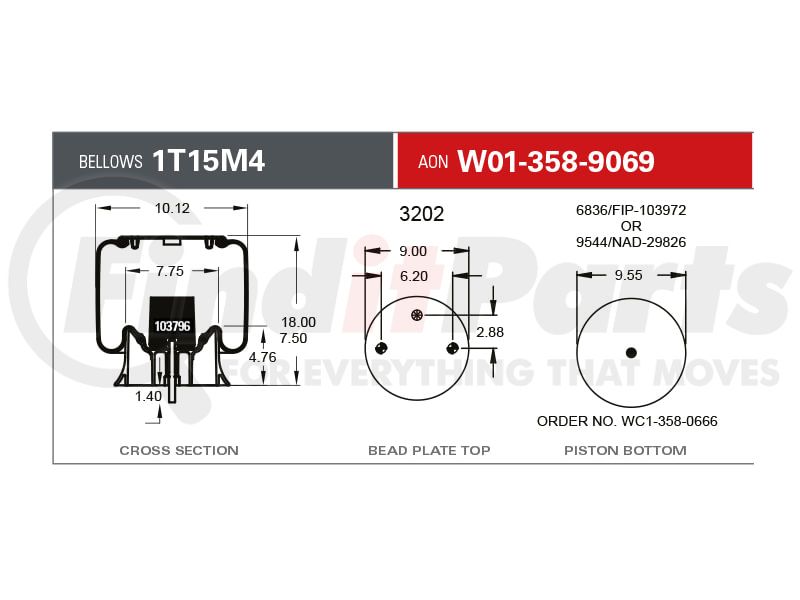

TECHNICAL DATA -
Order Number:
W01-358-9069
Bellows #:
1T15M-4
Assembly Weight:
14.2 lbs
Design Height:
10.5-12.5 inches
Minimum Jounce Height:
7.5 inches
Maximum Rebound Height:
17.82 inches
Loading Capacity at 20 psig:
1,410 lbsf
Loading Capacity at 60 psig:
4,230 lbsf
Loading Capacity at 90 psig:
6,345 lbsf
Natural Frequency:
Hz
Maximum Diameter:
12.5 inches
Material Type:
Natural Rubber
Operating Temperature:
57Cº to-54Cº
Remarks: FRP PISTON
FIRESTONE W013589069 Cross Reference
We have 45 alternatives for the W013589069 by FIRESTONE:
- TORQUE PARTS TR9069
- AS9069
- 1R12-069
- FIRESTONE 1T15M4
- AIRTECH 39069 C
- AIRTECH 39069J
- GOODYEAR 1R12069
- GOODYEAR 1R12676
- DAYTON PARTS 3529069
- BRAKE & WHEEL M3512
- W017038923
- 566243038/048
- FIW013589069
- CONTITECH AS9069
- HD VALUE HDV9069
- AIRTECH AIR SPRINGS 39069KPP
- HD VALUE HDV9069
- NAVISTAR FSIW013589069
- CONTITECH AS9069
- NAVISTAR FLTA1R12069
- TRIANGLE SUSPENSION AS-8312
- WORLD AMERICAN WA01-9069C
- MERITOR FS9069
- MERITOR MAF9069
- STEMCO 1R12-648
- STEMCO 1R12-655
- STEMCO 1R12-653
- STEMCO 1R12-663
- STEMCO 1R12-669
- STEMCO 1R12-654
- FIRESTONE 1T15M-4
- GOODYEAR BELLOWS 566-24-3-038
- GOODYEAR PART 1R12-069
- PETERBILT 03-01649
- PETERBILT 03-02038
- PETERBILT 03-02456
- PETERBILT 03-06746
- PETERBILT 03-04759
- PETERBILT 03-07112
- PISTON 9544
- TOP PLATE 3202
- TRIANGLE BELLOWS 6362
- TRIANGLE PART 8312
- NEWSTAR S-23977
- TORQUE PARTS TR8813
